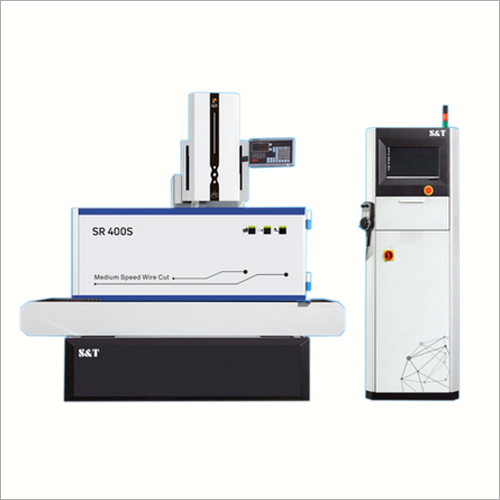

Submerge Type CNC Wire EDM
Product Details:
- Product Type Cutting Machine
- Power Source Electricity
- Operating Type Automatic
- Surface Treatment Coated
- Usage/Applications Industrial
- Click to view more
X
Price And Quantity
- 1 Piece
Product Specifications
- Coated
- Cutting Machine
- Industrial
- Automatic
- Electricity
Product Description
SPECIFICATION
| Maximum taper angle | +-22 Degree/ 80mm with wide diamond guide and nozzle |
| Max. work piece size | 750 x 550 x 215 mm |
| Max. work piece weight | 500kg |
| Number of axes controlled | XY axis linear motor, UV Z axis AC servo motor |
| Tank capacity | 650 L |
| Travel of X/Y axes | 400 x 300 mm |
| U & V axis travel | 80 x 80 mm |
| Wire Diameter | 0.15 - 0.3 mm |
| Machine Weight | 3050 kg |
| Automation Grade | Automatic |
| Model Name/Number | NP400L |
| Brand | Excetek |
| Machine Condition | New |
